Feeders & Bulk Fuel Tanks
Weldy Feeders
Hay saving feeders for cattle, horses and sheep. Various sizes to accommodate round bales, big squares and small bales. Dual purpose feeders for forage and grain and feed bunks if hay is not in the ration. Some larger models even have a roof option for the rainy season.

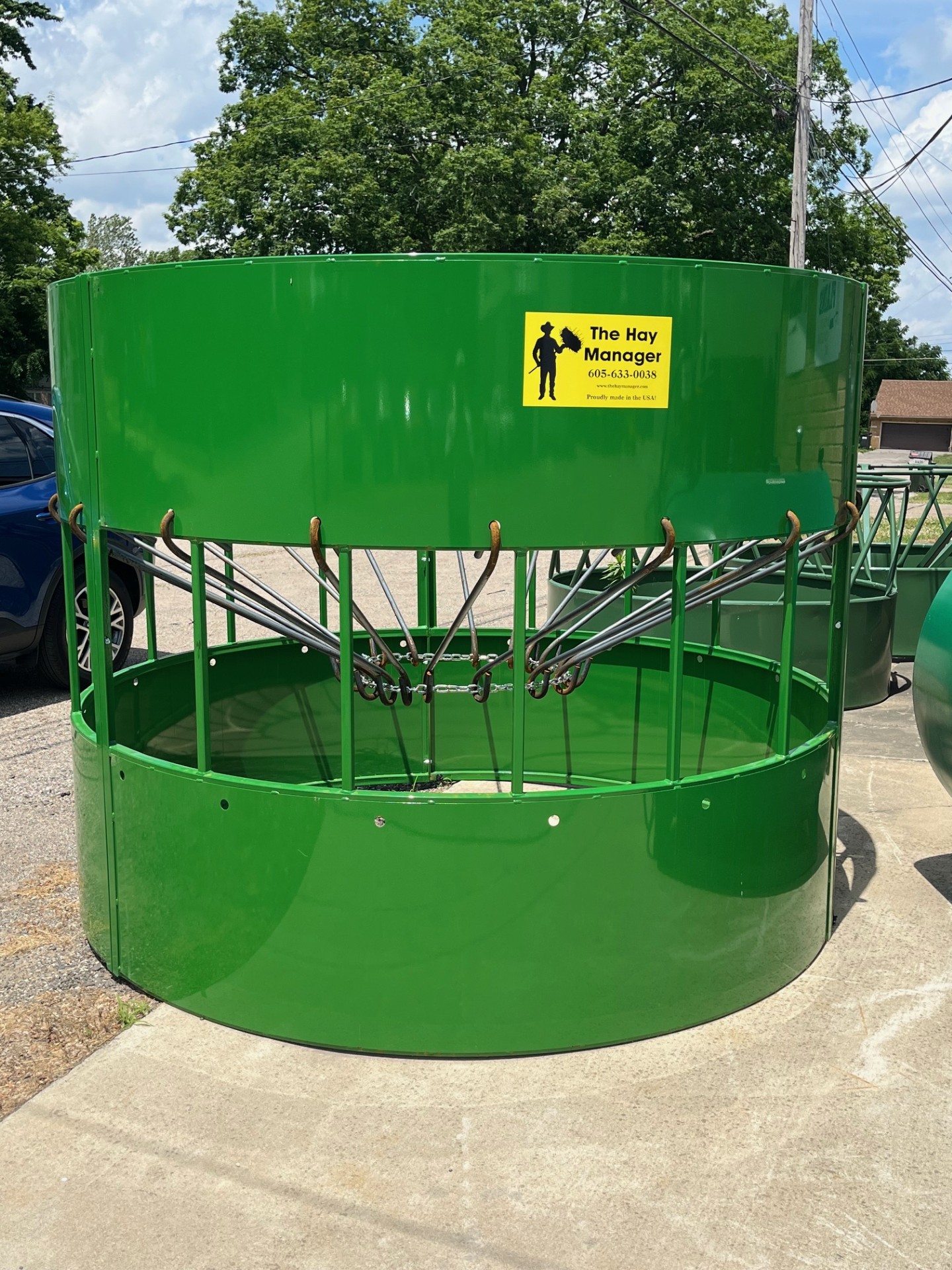

Round Bale Feeders
R7C – Round 7’ Cone Feeder for cattle 7’8” diameter and 6’ 2” tall. Hay savings up to 30%, 630 lbs.
R7 – Standard Round Bale Feeder for cattle 7’8” Diameter 3’11” tall, 280 lbs.
R7CShort – Same as the R7C without the top ring. For smaller cattle. Hay savings up to 15%.

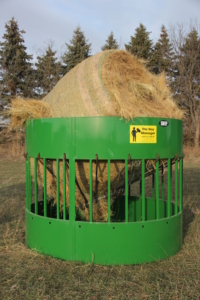

R6CS Sheep – Round 6’ Cone Feeder for Sheep 6’4” Diameter and 5’ tall, 450 lbs.
R6CCF-Calf – Round 6’ Cone Feeder for Calves 6’4” Diameter and 5’ tall, 450 lbs.
R6C – Round Cone Feeder 6’ 4” diameter and 6’2” tall, 570 lbs for smaller cattle breeds.

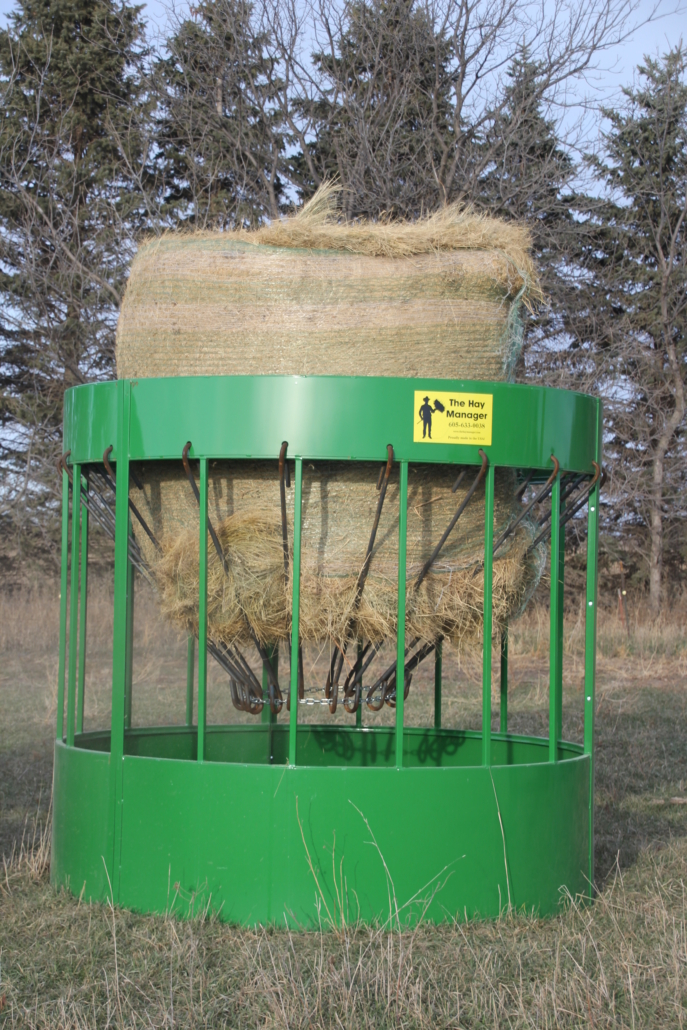

R7CH – Round Cone Feeder 7’ 8” Diameter and 8’2” tall, 650 lbs for horses.
WER7x7 Round Bale Feeder – This will accommodate any size round bale.
R7C
R7
WER 7×7
R7 Short
Big Square Bale Feeders
Similar options to the round bale feeders. Sheet metal at the bottom keeps the hay in while the slant bars keep your livestock out.
Standard sizes run from 3’ x 10’ to 5’ x 24’.
Model 5x12HSSQ - 5’ wide x 12’ long.
Rectangular Hay Savers
The same principles here as the round cone feeders. Sheet metal around the top and bottom keeping the hay in with tubing to hold the bale off the ground and slide down as it is eaten.
Rectangular Hay Savers range from then 3×10 which is 3 ft wide and 10 ft long and 230 lbs to the 5 x 24 which is 5 ft wide by 24 ft long and 960 lbs.
6 Sided Feeders
Model H4S 6-sided Feeder is designed for sheep with a steel floor, 4 ft wide, 34” height, 8” skirt and 16” to top of the skirt, 16 slanted bars, 105 lbs.
Model H4C same specs as the H4S but designed for calves with only 12 slant bars.
Model H5 6-sided feeder. Feeds hay and grain for cattle and horses. Steel floor, 12 slant bars, 5’ wide, 4’ tall, 8” skirt, 23” to top of skirt, 190 lbs.
Feed Bunks
Feed bunks range from 2×10 which is 2ft wide with 10” center depth and 10’ long to the 5x12D which is 5 ft wide with a 24” center depth and 12’ long. These feeders can be equipped with or without a hay saver rack.
Quality Steel Fuel Tanks
Looking for fuel tanks for your farm and business to get bulk fuel delivered? Our fuel delivery service has discounts available at 200, 500, and 1000 gallons per trip. Bigger tanks can offer greater savings. Both overhead units with gravity flow and ground tanks on skids are available. Pumps can be ordered but are not included with the skid mount tanks. Simplify your fuel storage and quit hauling the cans or occupying your pickup bed.

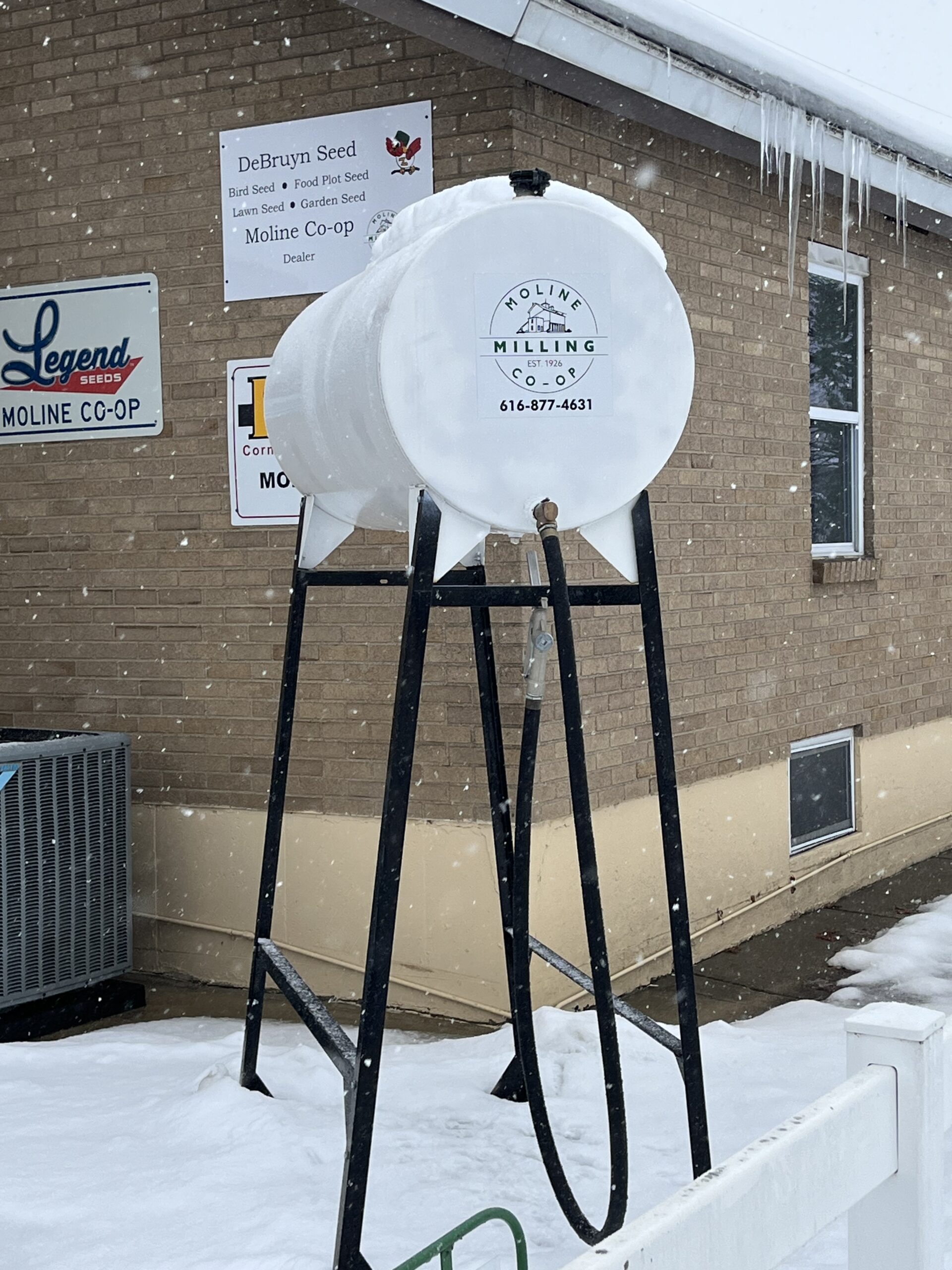

Overhead Farm Units
160 Gallon 14 Gauge 28” x 62” Outlet Height 69”
300 Gallon 14 Gauge 38” x 62” Outlet Height 74”
⦁ Gravity Fill
⦁ No Pump Required
* Overhead tanks come complete with stand, gauge, emergency valve, nozzle, 10′ hose.
Above Ground Skid Mounted Storage Tanks
160 Gallon 12 Gauge 28” x 62”
300 Gallon 12 Gauge 38” x 62”
550 Gallon 12 Gauge 48” x 74” In Stock
1050 Gallons 10 gauge, 48” x 134”
1500 Gallon 7 Gauge 64” x 110”
2000 Gallon 7 Gauge 64” x 144”
3000 Gallon 7 Gauge 64” x 216”
4000 Gallon 7 Gauge 64” x 28”
*Pump not included*
Standard Fittings 2” fill, 1” E. Valve, 1 1.2” gauge and a ½” drain.
Available in green, red, black, blue and white.
